Technical Specifications of Side-Mounted Plastic Sand Filters With Valve
|
DIAMETER |
FLOW |
SAND |
CONNECT |
CODE |
BOX |
|
400 mm |
6.03 m3/h |
50 Kg |
50 mm |
AAP09 |
1 Piece |
|
500 mm |
10.0 m3/h |
75 Kg |
50 mm |
AAP10 |
1 Piece |
|
600 mm |
14.0 m3/h |
150 Kg |
50 mm |
AAP11 |
1 Piece |
|
760 mm |
22.0 m3/h |
300 Kg |
63 mm |
AAP15 |
1 Piece |
|
CODE |
DIAMETER |
FILTRAT AREA |
CONNECT DIAMETER |
VOLUME |
NET WEIGHT |
SAND QUANTİTY |
|
AAP09 |
400 mm |
50 Kg |
50 mm |
m3 |
Kg |
50 Kg |
|
AAP10 |
500 mm |
75 Kg |
50 mm |
m3 |
Kg |
75 Kg |
|
AAP11 |
600 mm |
150 Kg |
50 mm |
m3 |
Kg |
150 Kg |
|
AAP15 |
760 mm |
300 Kg |
63 mm |
|
|
300 Kg |
|

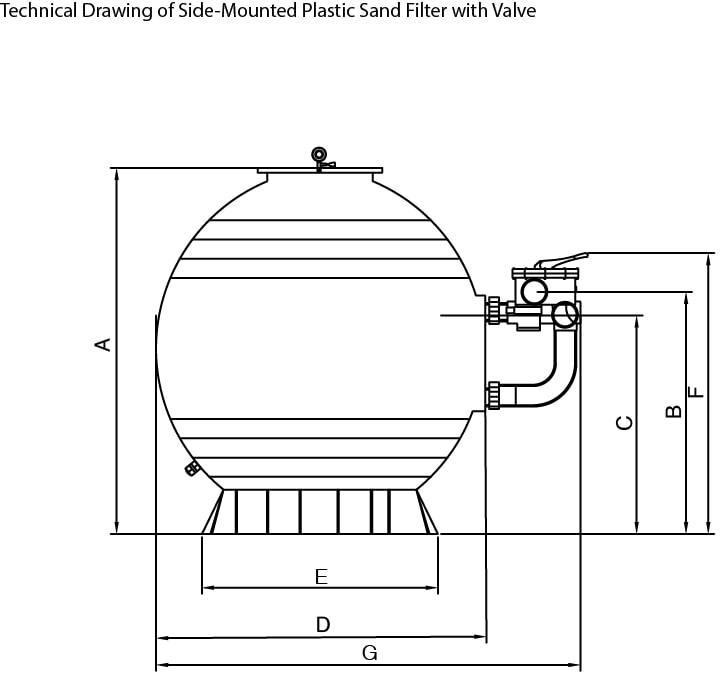

DIAMETER (MM) |
A (MM) |
B (MM) |
C (MM) |
D (MM) |
E (MM) |
F (MM) |
G (MM) |
|
Ø 400 |
570 |
|
364 |
400 |
|
|
|
|
Ø 500 |
730 |
|
433 |
500 |
|
|
|
|
Ø 600 |
805 |
|
458 |
600 |
|
|
|
|
Ø 760 |
940 |
|
574 |
760 |
|
|
|
