Filters & Pumps

Top Valve Plastic Sand Filter AAP



The valve control has a top flange connection and a collector-type collection system. The operating pressure is 1.0-2.0 kg/cm². The multi-way control valve, connection parts, and nanometer are sold separately, excluding filter sand.

  • AAP01
  • AAP02
  • AAP03
  • AAP12




Technical Specifications of Top-Mounted Plastic Sand Filters with Valve


DIA. FLOW SAND CONN. COD. BOX
300mm 3,5m3/h 40Kg 50mm AAP01 1 PIECE
400mm 6.0m3/h 50Kg 50mm AAP02 1 PIECE
500mm 10.0m3/h 75Kg 50mm AAP03 1 PIECE
600mm 14.0m3/h 150Kg 50mm AAP12 1 PIECE

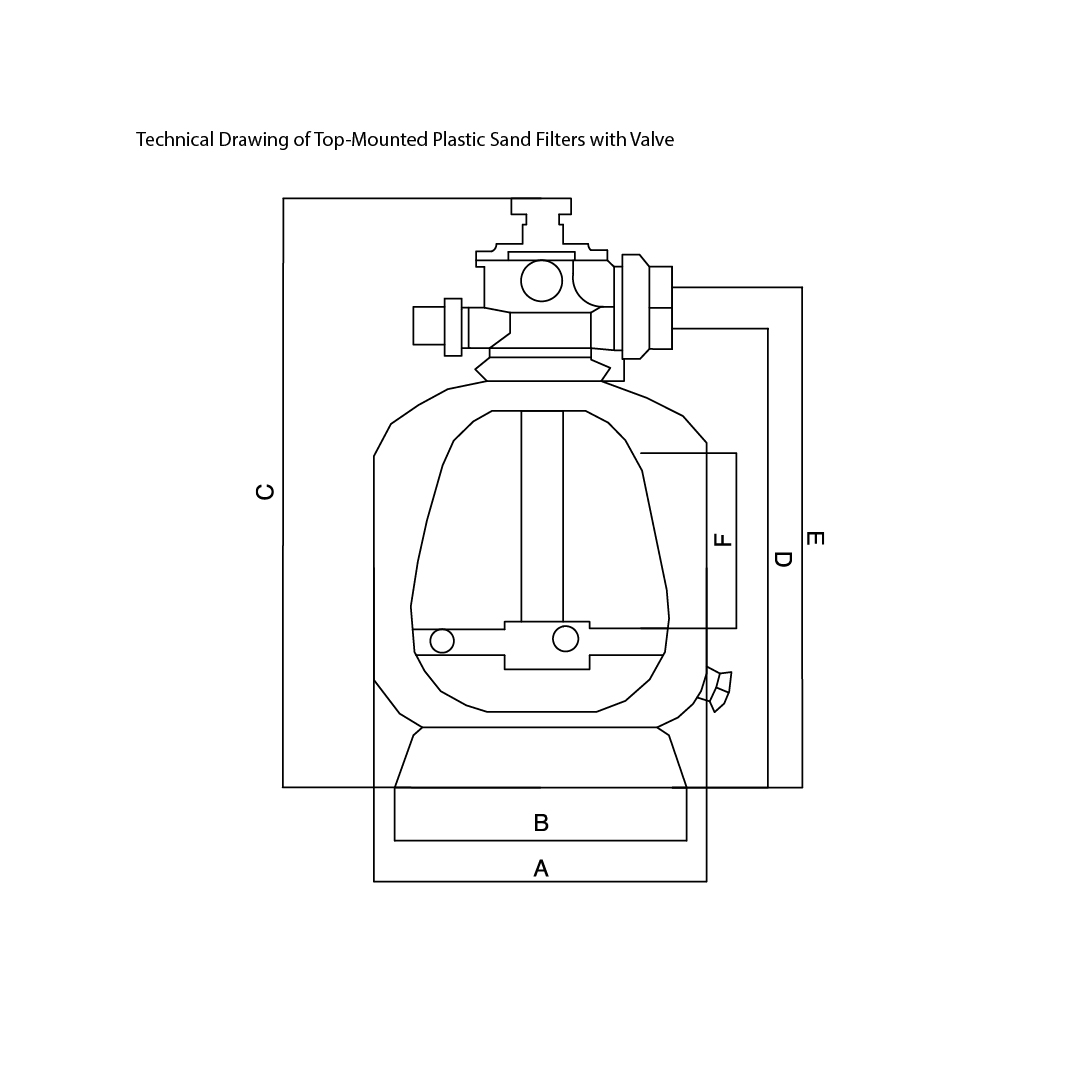

ÇAP/DIA. ALAN/AREA B  (MM) B (MM) D (MM) E (MM) E (MM)
Ø 300 0,070 m2   650
Ø 400 0,125 m2   750
Ø 500 0,197 m2   880
Ø 600 0,282 m2   998
