Pool Around & Inside
489
Pina Liner Main Drain - Brass Insert.
Suitable for all type of liner applications and polyester pools. Can be installed by using 1
1/2” female threaded bottom outlet or side outlet. Flange, gaskets and all screws are
included.
Previous
Next
Technical Detail

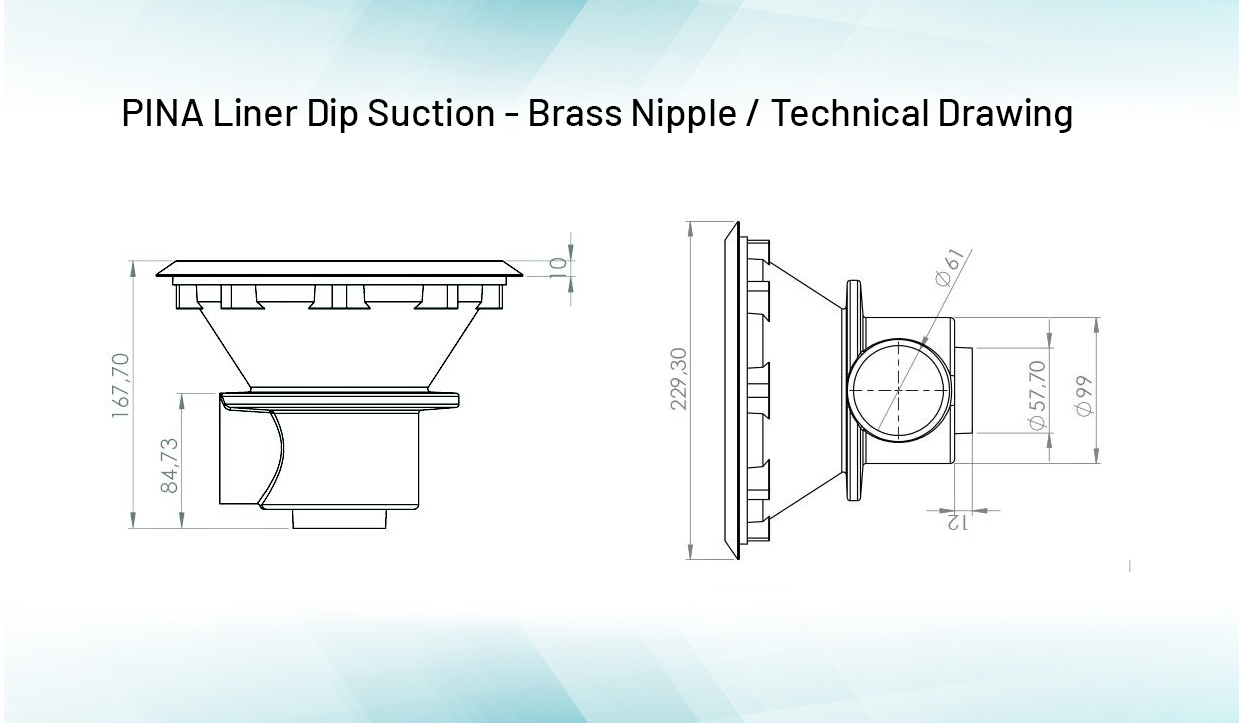

Technical Drawing
Code
Diameter
Flow
Size
CFS12
Liner 2”
13,0 m³/h
220 mm / 9"
